Mercedes-Benz W201 190E KE-Jetronic Diagnosis – Part 1

When the Problem Wasn't Only the Fuel Injection System
Some classic Mercedes-Benz vehicles reveal far more than expected within the first few seconds after starting the engine.

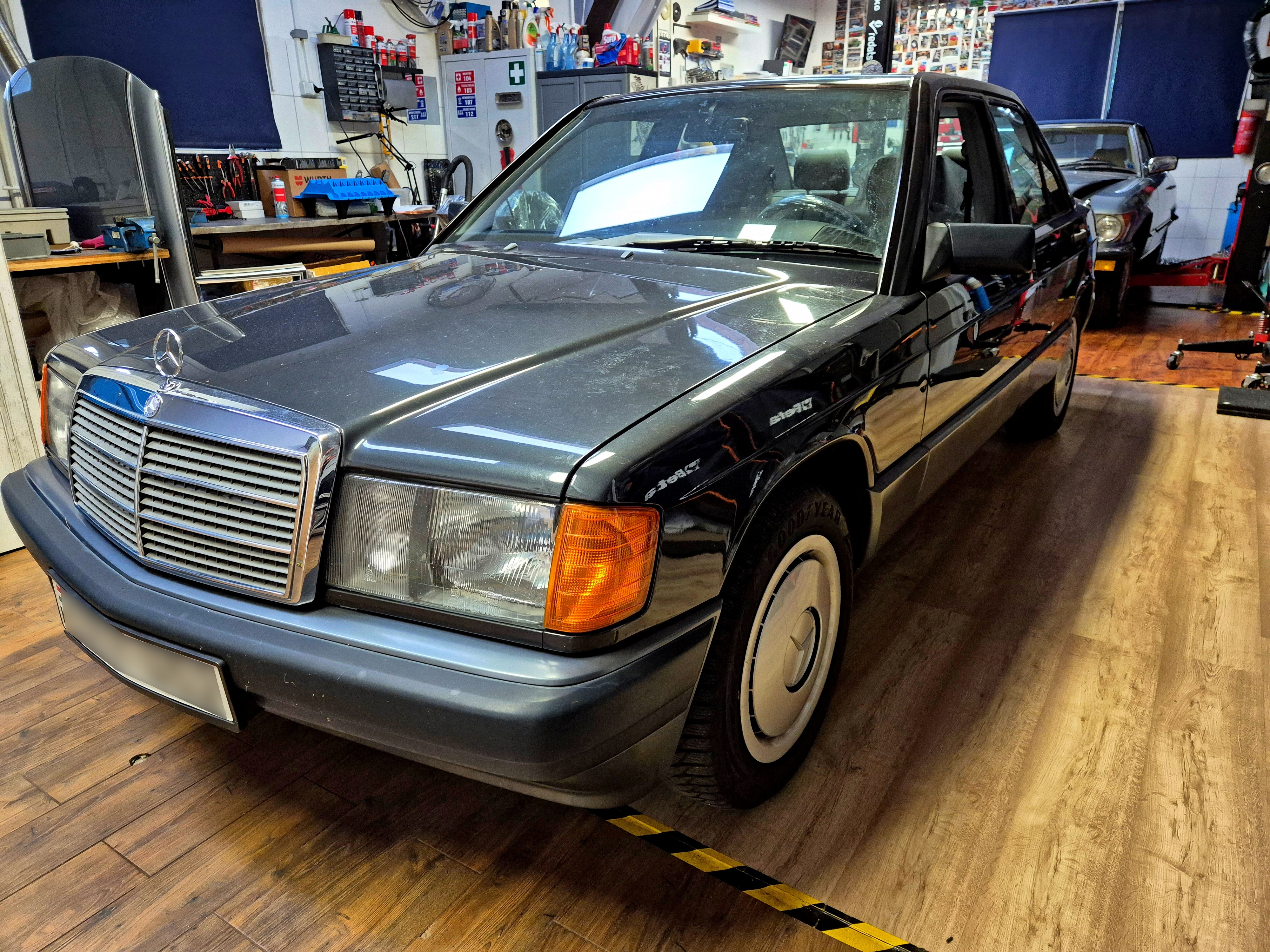

This Mercedes-Benz W201 190E arrived at OTC Garage Hungary for a complete Bosch KE-Jetronic diagnostic inspection. The owner reported poor engine performance and unstable operation, while the fuel injection system had already undergone previous repairs.

The initial task was to diagnose the KE-Jetronic system and identify the cause of the running problems.

However, immediately after starting the engine, one particular symptom changed the direction of our inspection.

The engine produced an unusually loud metallic knocking noise, very similar to the sound of an old naturally aspirated Mercedes-Benz diesel engine.

At that moment, it became clear that investigating only the fuel injection system would not be enough.

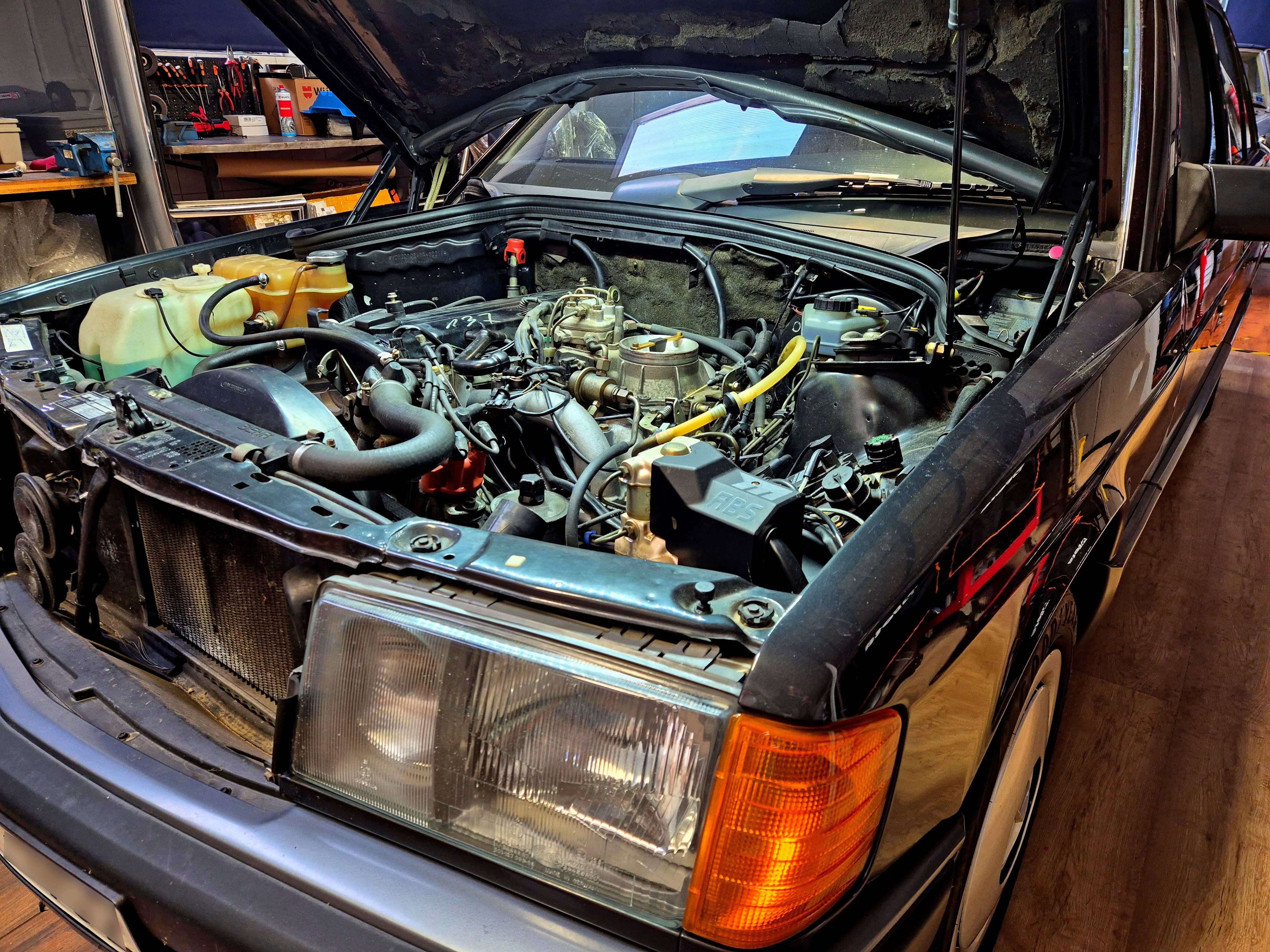

Before carrying out any KE-Jetronic adjustments, we decided to perform a complete mechanical inspection of the engine.


Mechanical Inspection Before Fuel Injection Diagnosis
Every Bosch KE-Jetronic system relies on one essential condition:

The engine itself must be mechanically healthy.

Incorrect valve timing, excessive camshaft wear or damaged valve train components can all produce symptoms that closely resemble fuel injection faults.

For this reason, the valve cover was removed and a complete inspection of the valve train was carried out before any adjustments were made to the injection system.

Very quickly it became obvious that the engine had been repaired previously.

Unfortunately, several signs suggested that not every repair had been carried out according to factory specifications.

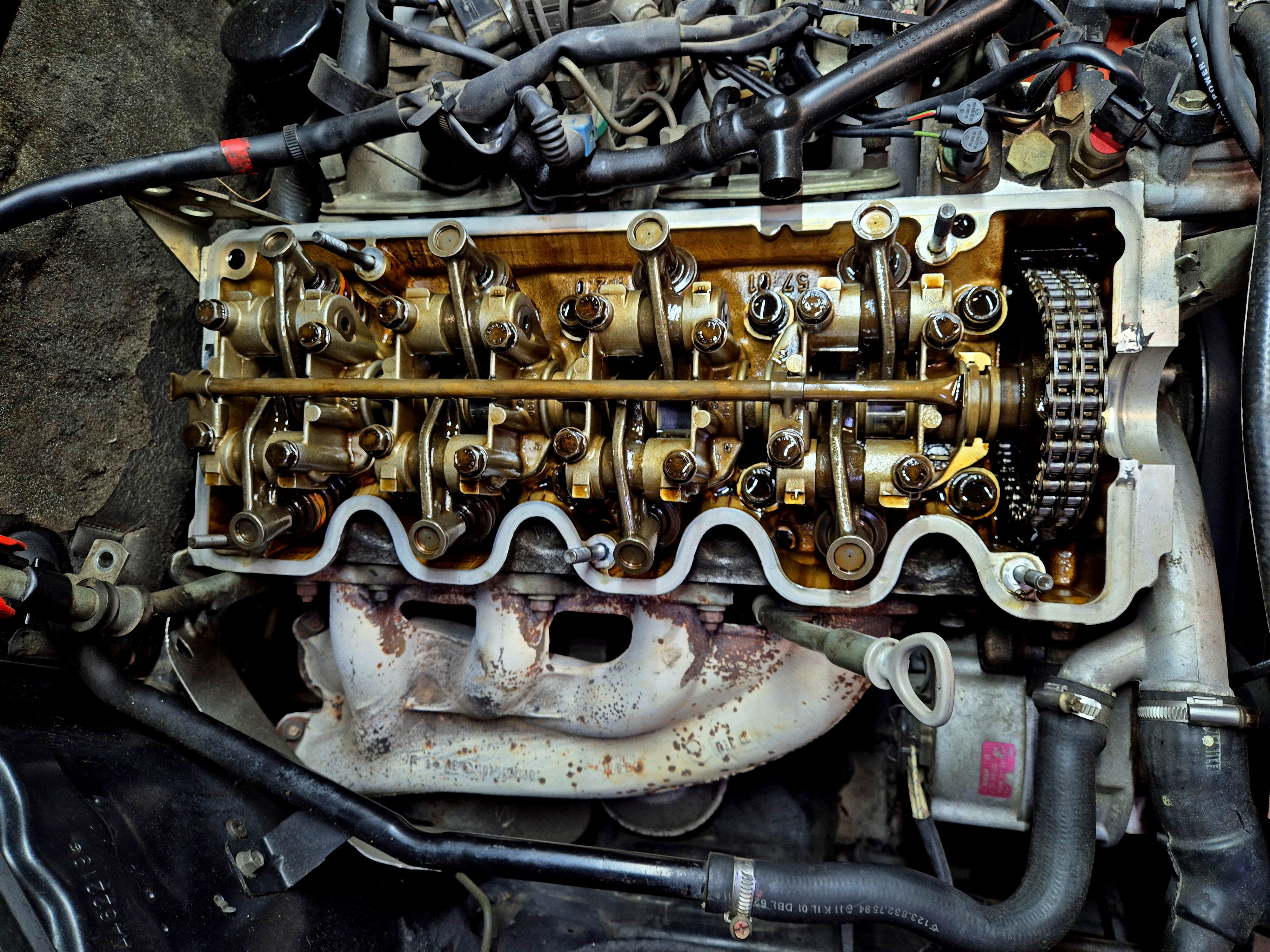

Incorrect Camshaft Timing
The first significant issue appeared during the timing inspection.

The camshaft timing was found to be incorrectly set.

Even a relatively small timing error can noticeably affect engine performance, idle quality and fuel injection calibration.

Attempting to adjust a KE-Jetronic system on an engine with incorrect valve timing would simply produce inaccurate diagnostic results.

The investigation therefore continued deeper into the mechanical condition of the engine.

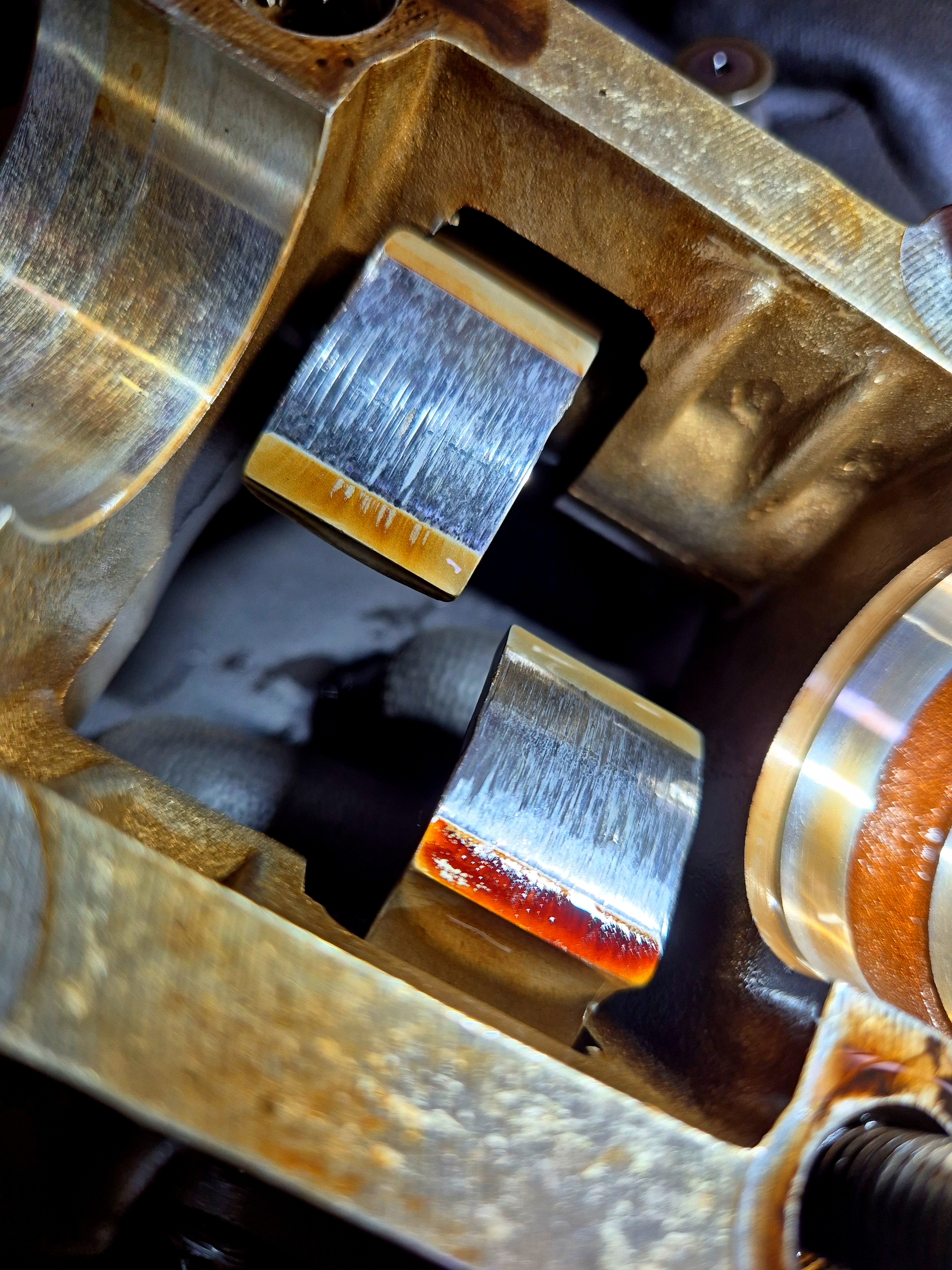

An Incorrectly Installed Rocker Arm Support
During the inspection of the valve train, another unexpected discovery was made.

One of the rocker arm supports had previously been installed in the wrong orientation.

Although this may appear to be a minor assembly mistake, its position influences lubrication paths and the operating geometry of the valve train.

Incorrect installation can accelerate wear over time and is a clear indication that previous repairs were not performed according to Mercedes-Benz factory procedures.

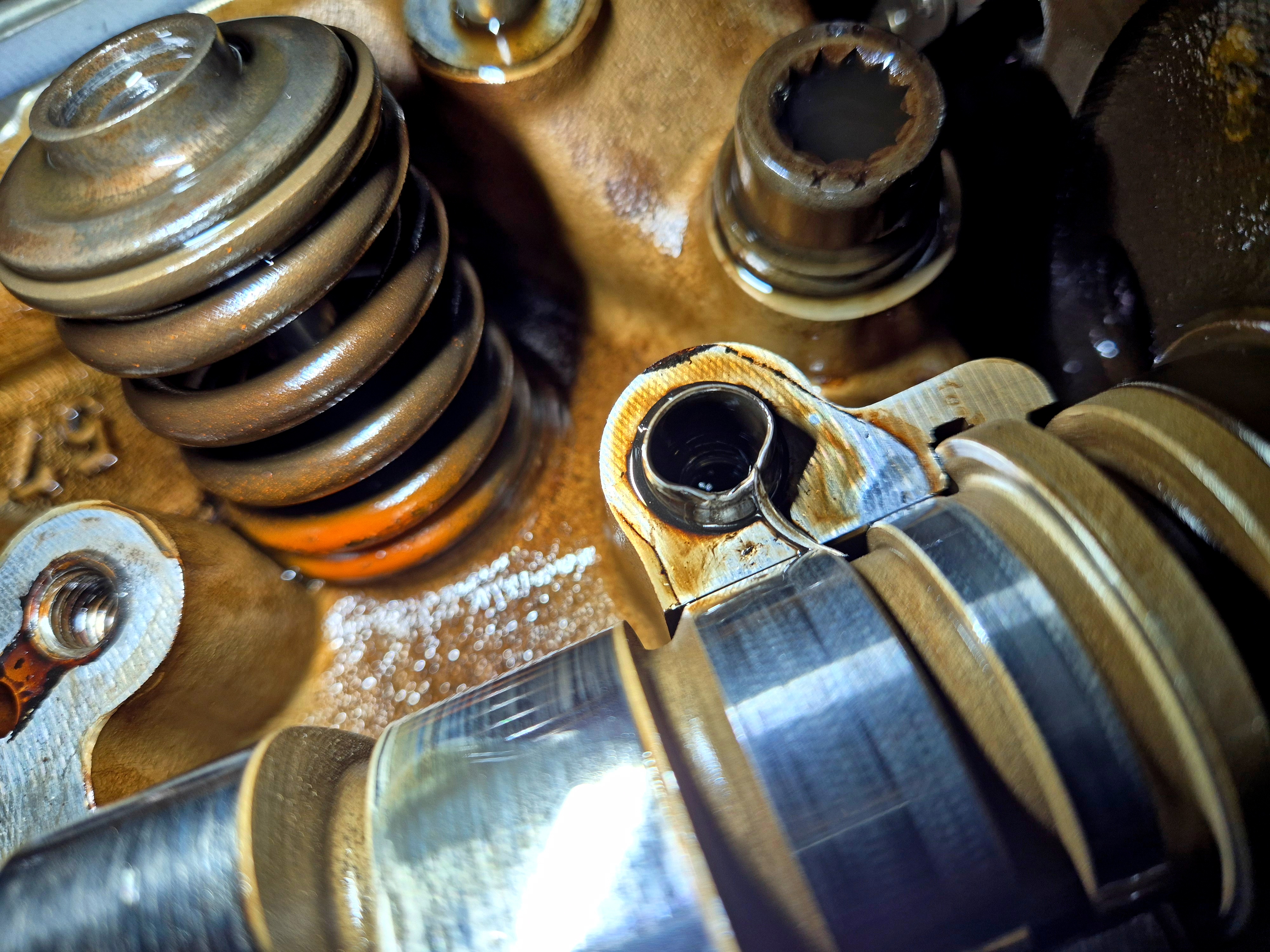

Severe Camshaft and Rocker Arm Wear
As the inspection continued, the cause of the unusual engine noise became increasingly clear.

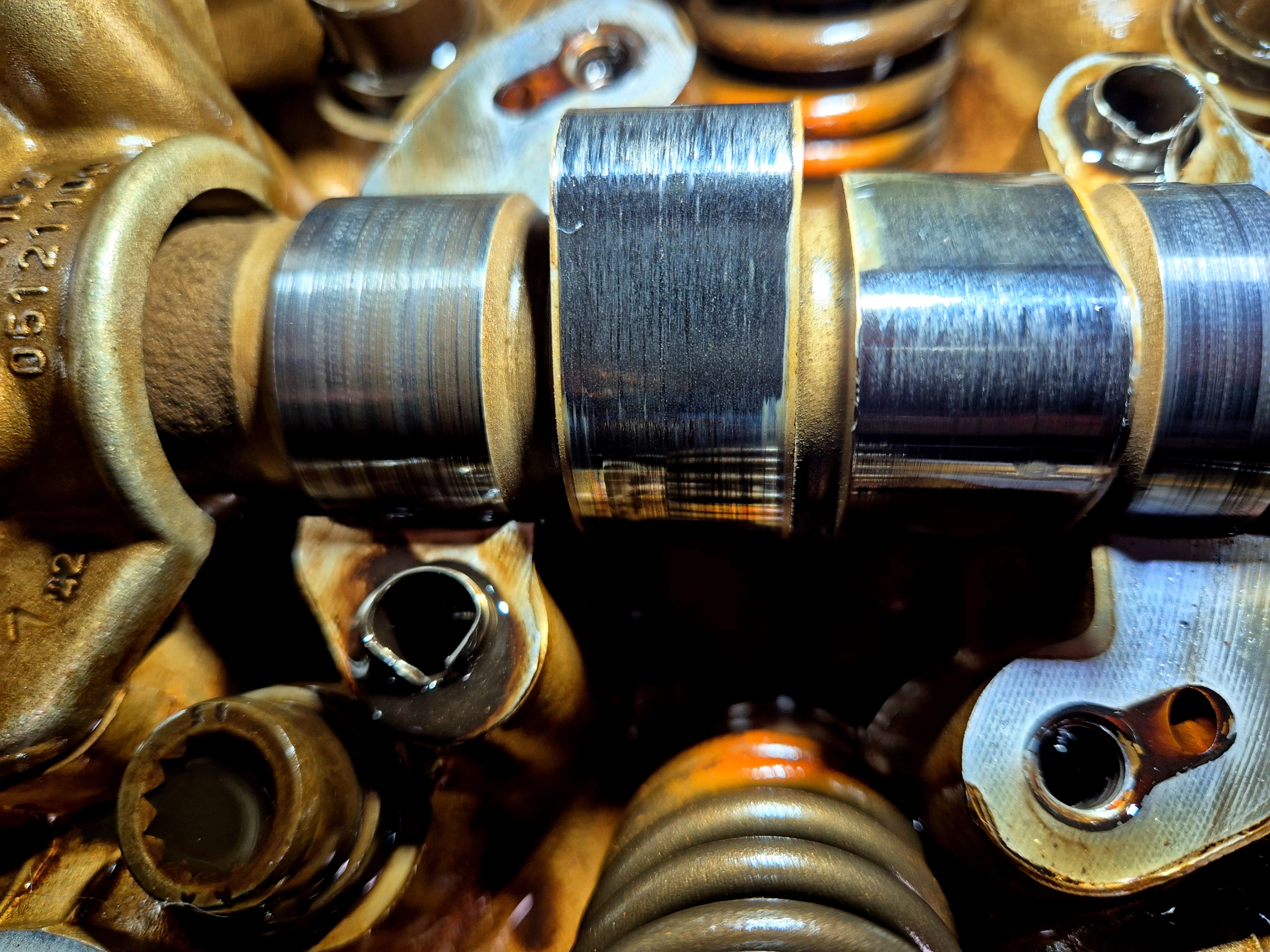

Several camshaft lobes showed heavy wear, with deep longitudinal scoring visible across the contact surfaces.

The rocker arms displayed similar wear patterns, confirming that the components had been operating under abnormal conditions for a considerable period.

This level of wear goes far beyond normal age-related deterioration.

It directly affects valve lift, engine efficiency and combustion quality.

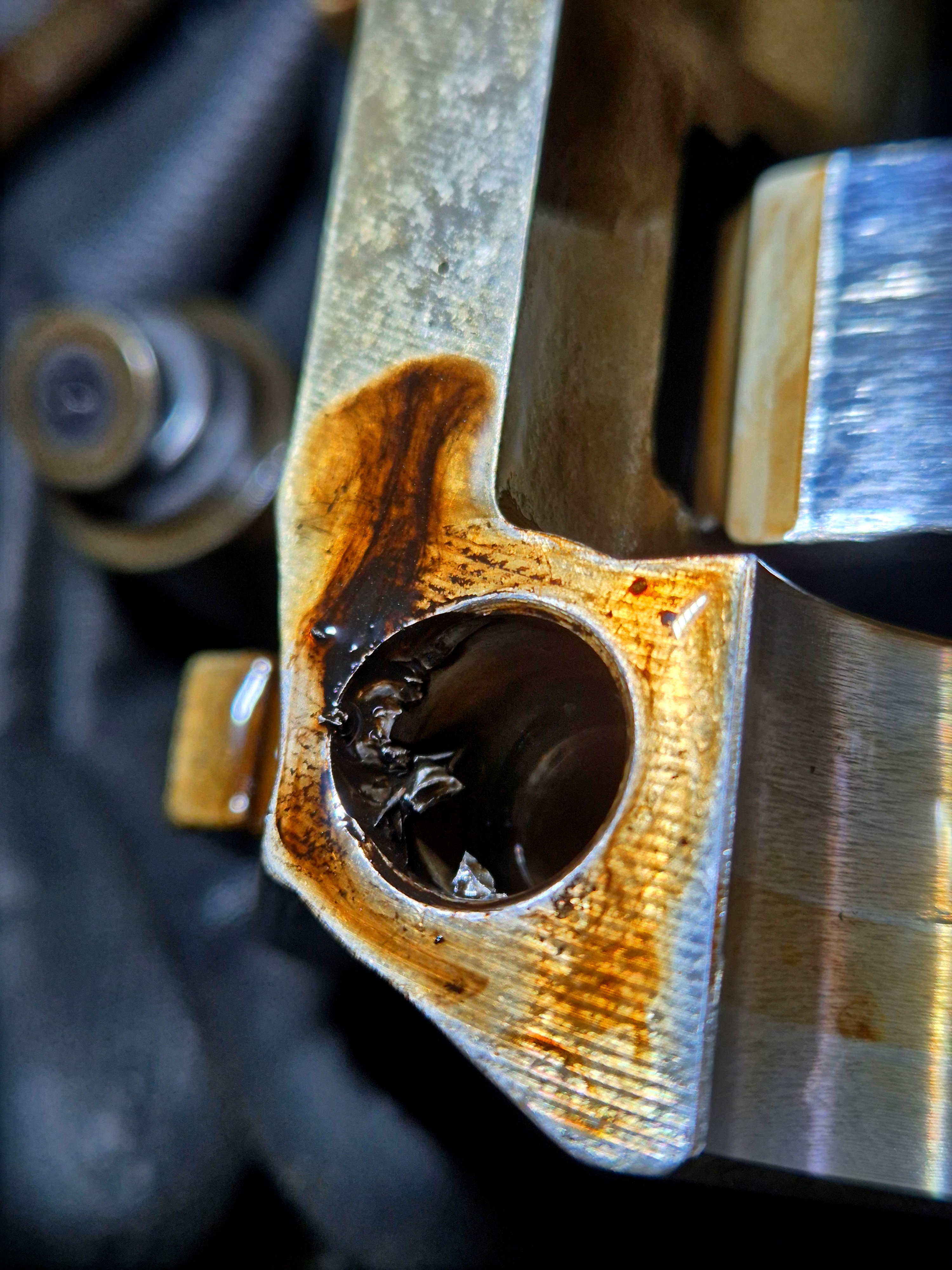

Metal Debris Inside the Cylinder Head
One of the most concerning findings during the inspection was the presence of metal particles inside the cylinder head.

Visible metal debris is always a warning sign.

It indicates that mechanical wear has progressed beyond normal surface polishing and that material is actively being removed from engine components.

These particles can circulate through the lubrication system and eventually damage additional engine parts if left unaddressed.

The condition of the camshaft fully supported this diagnosis.


Why We Didn't Start with the KE-Jetronic System
Many workshops immediately begin adjusting the fuel injection system when faced with poor engine performance.

Our approach is different.

A Bosch KE-Jetronic system can only be accurately diagnosed when the engine itself is mechanically sound.

Incorrect camshaft timing, worn valve train components and mechanical damage will inevitably influence fuel mixture, idle quality and diagnostic measurements.

For this reason, identifying and documenting the mechanical faults became the priority before continuing with the fuel injection diagnosis.


The Story Continues...
Although the mechanical condition of the engine explained the unusual diesel-like noise, it was not the only issue affecting this Mercedes-Benz.

The KE-Jetronic system itself also showed clear evidence of previous improper repairs, external damage and incorrect adjustments.

Fuel pressure testing, EHA inspection and a complete examination of the Bosch KE-Jetronic system will be covered in the second part of this project.
