Mercedes-Benz W109 300 SEL 4.5 V8 Full Restoration – A US-Market Luxury Saloon Reborn

Mercedes-Benz W109 300 SEL 4.5 V8
The W109 is one of the most distinctive luxury saloons from the classic Mercedes-Benz era. Behind its elegant and restrained bodywork lies an impressive level of engineering: a large-capacity V8 engine, automatic transmission, sophisticated suspension and a complete pneumatic suspension system.

The 4.5-litre V8 version was developed primarily for the North American market. This particular car also originates from the United States, but after the restoration has been completed, it will begin the next chapter of its life on the roads of Germany.

Restoring a car of this calibre is not only a substantial technical undertaking but also a responsibility. Its original engineering character must be preserved while ensuring that every system operates safely, reliably and in harmony with the rest of the vehicle.

A Ground-Up Restoration Starting with the Bare Shell

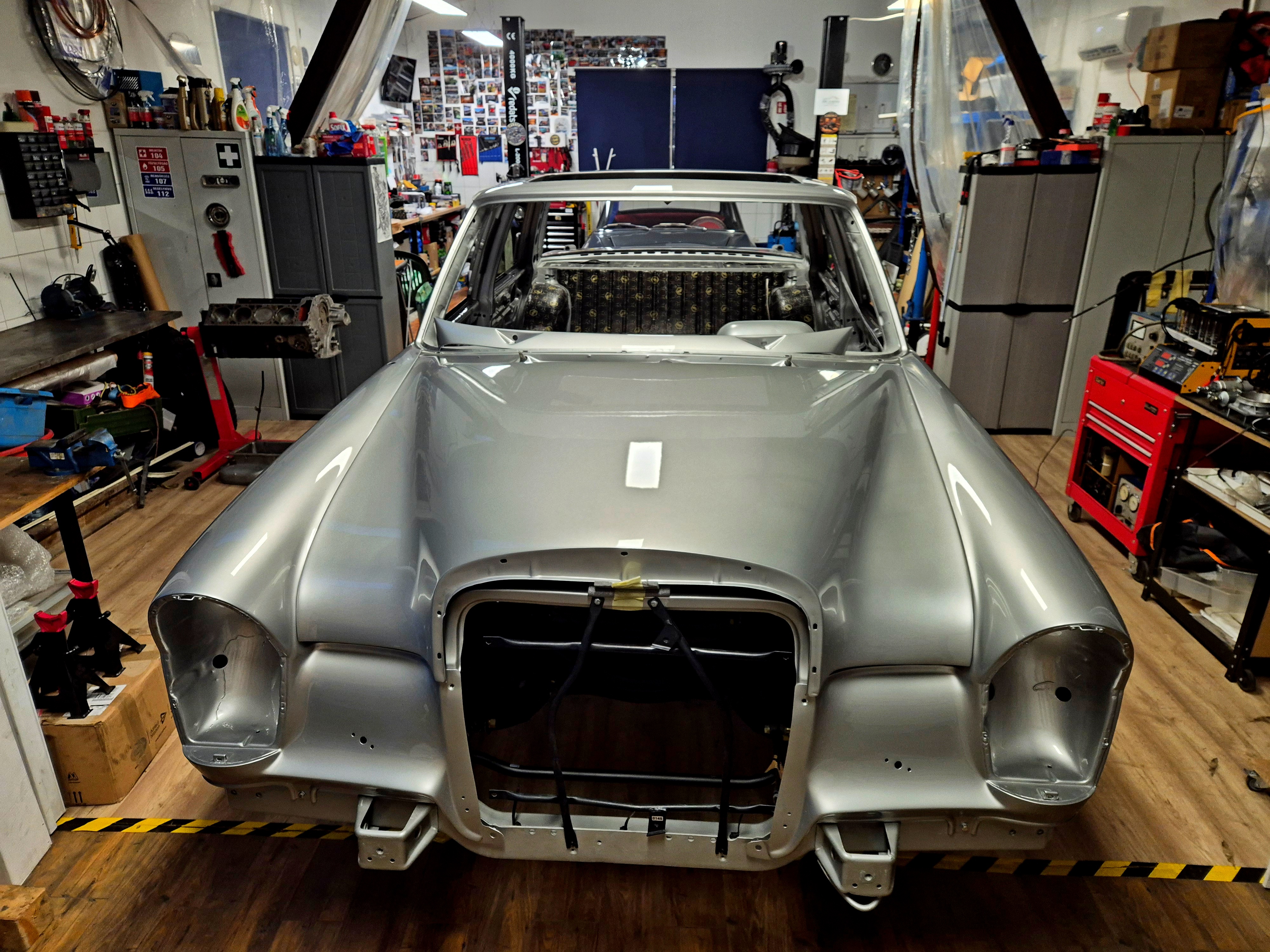

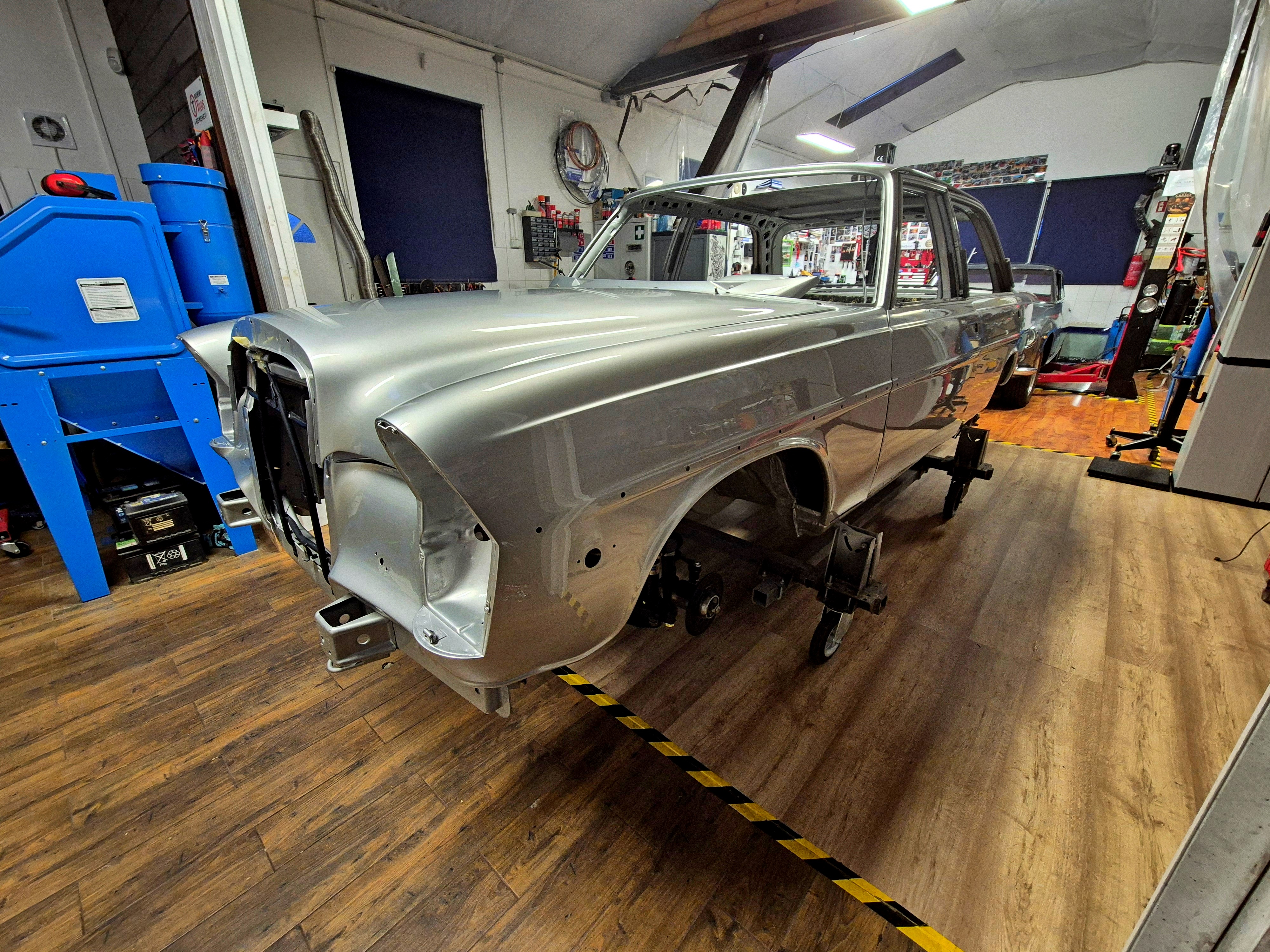

The body was stripped down completely to the bare shell. This provided access not only to the visible exterior panels but also to the cavities, seams, wheel arches, floor sections and structural areas normally concealed once the car has been assembled.

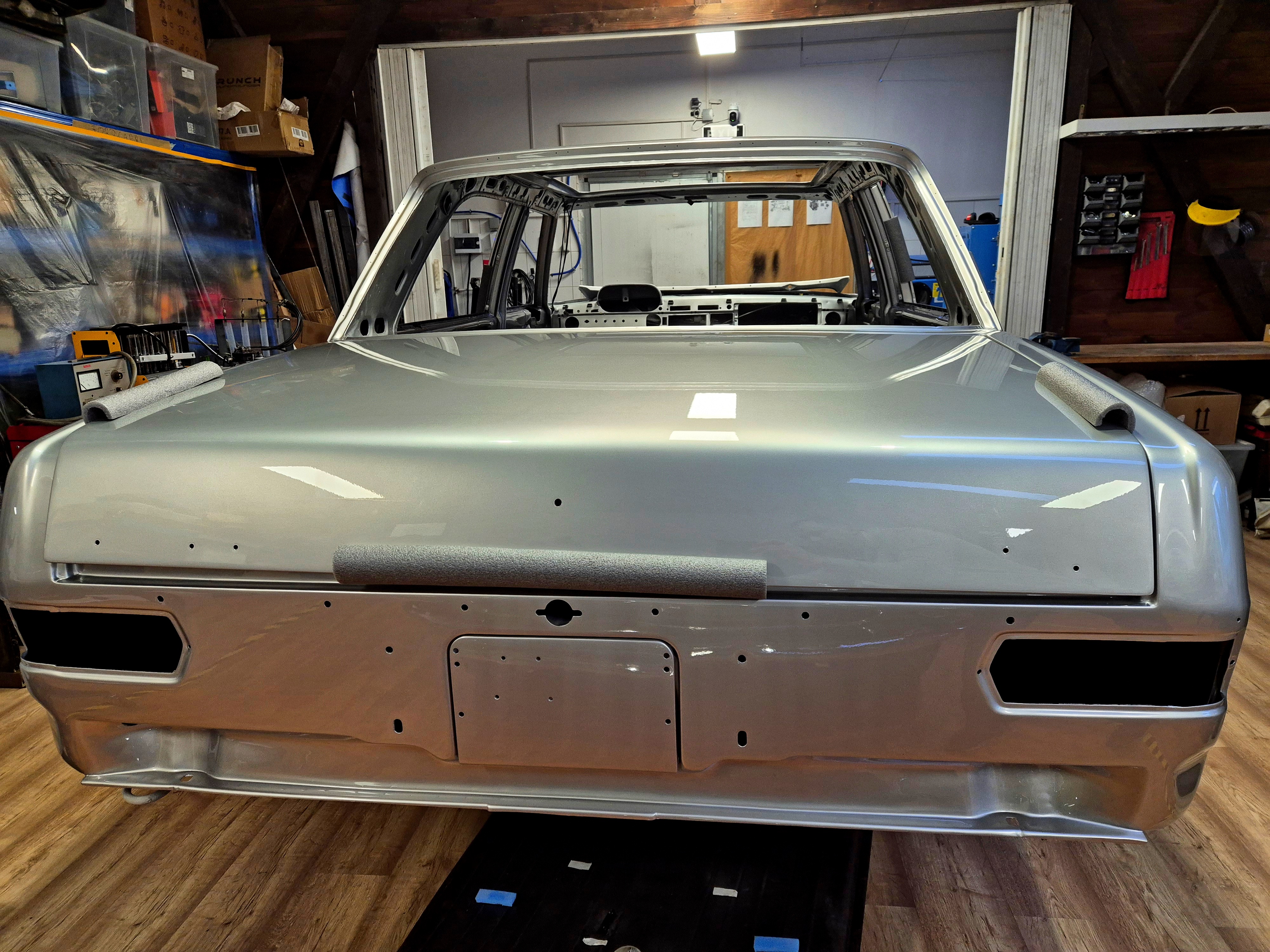

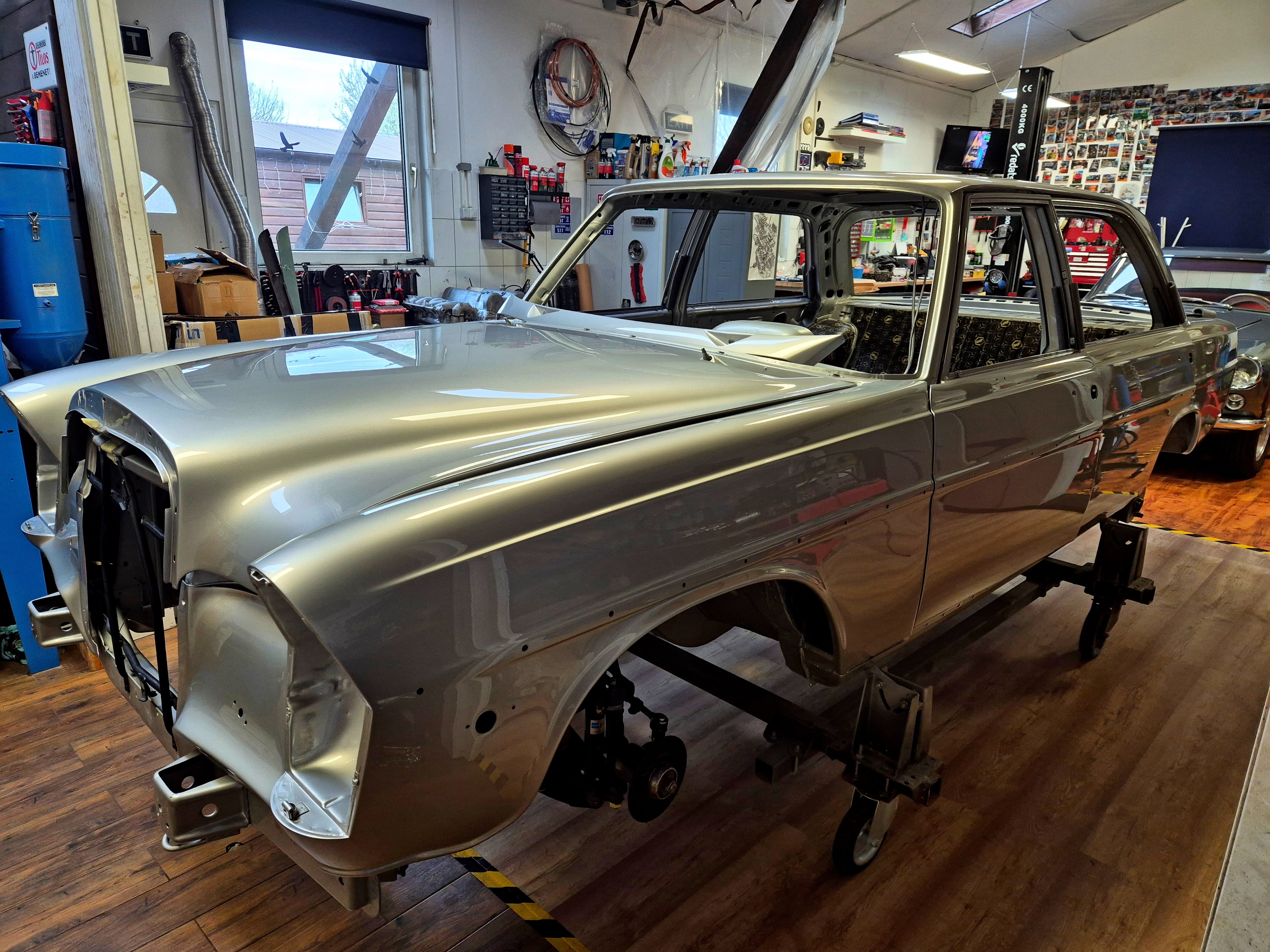

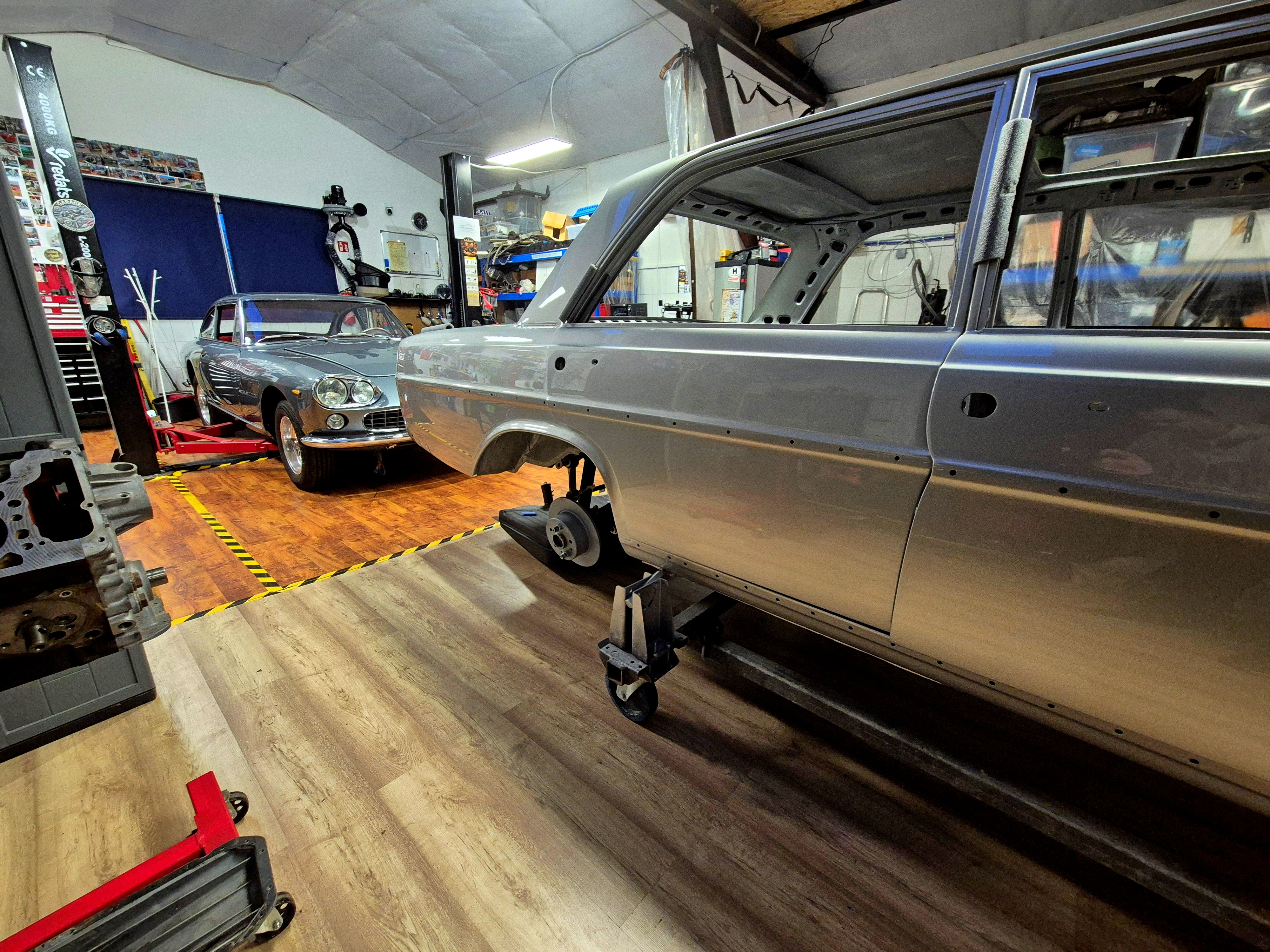

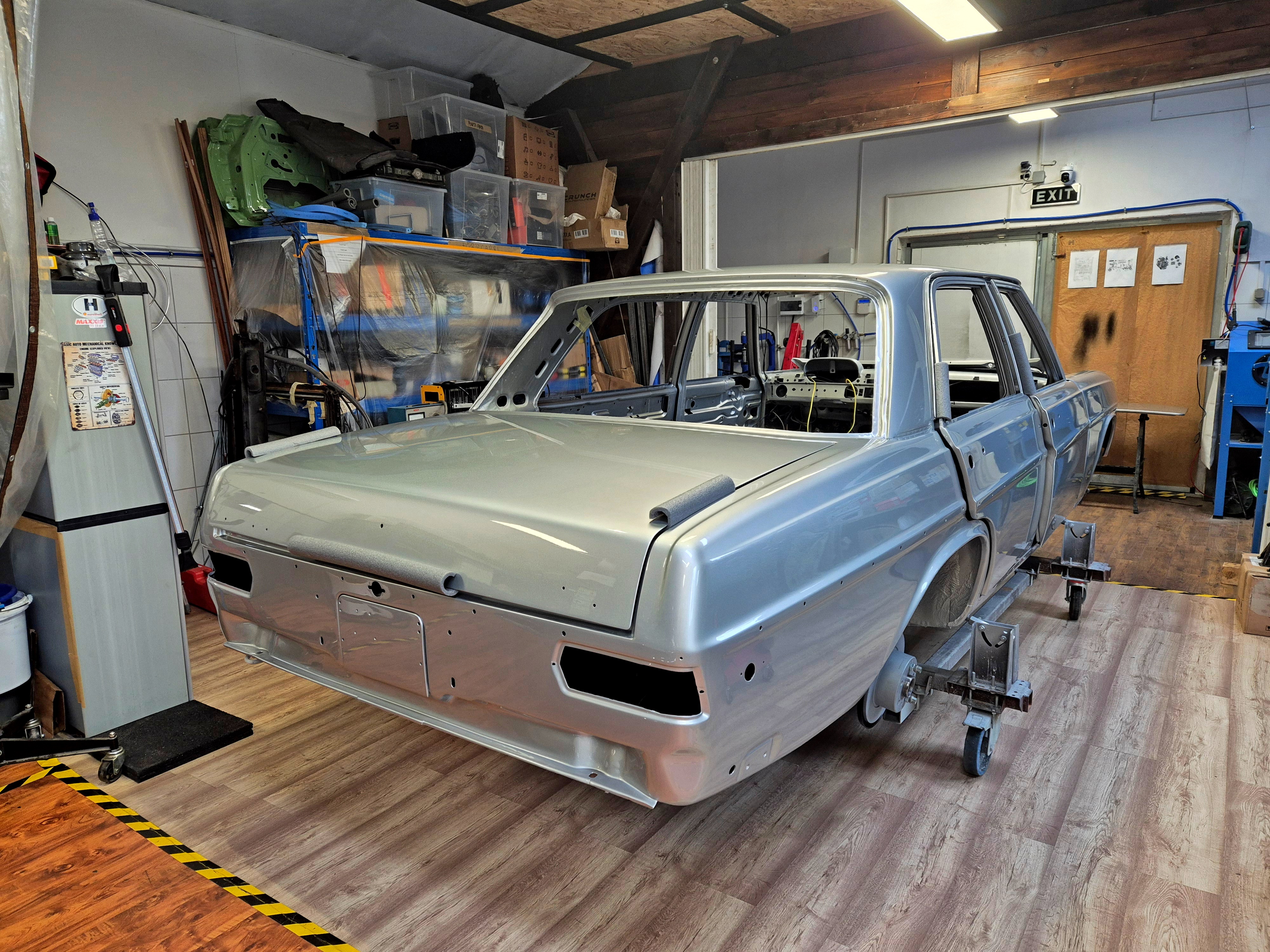

Following the bodywork and surface preparation, the Mercedes received its new paintwork. The classic silver finish highlights the clean lines, long bonnet and elegant proportions that define the W109.

Our attention is not limited to the highly visible exterior surfaces. Protecting the floorpan, underside and wheel arches is equally important, as the long-term durability of a complete restoration is often determined by the areas that will no longer be visible once the vehicle is finished.

Rebuilding the Front Suspension

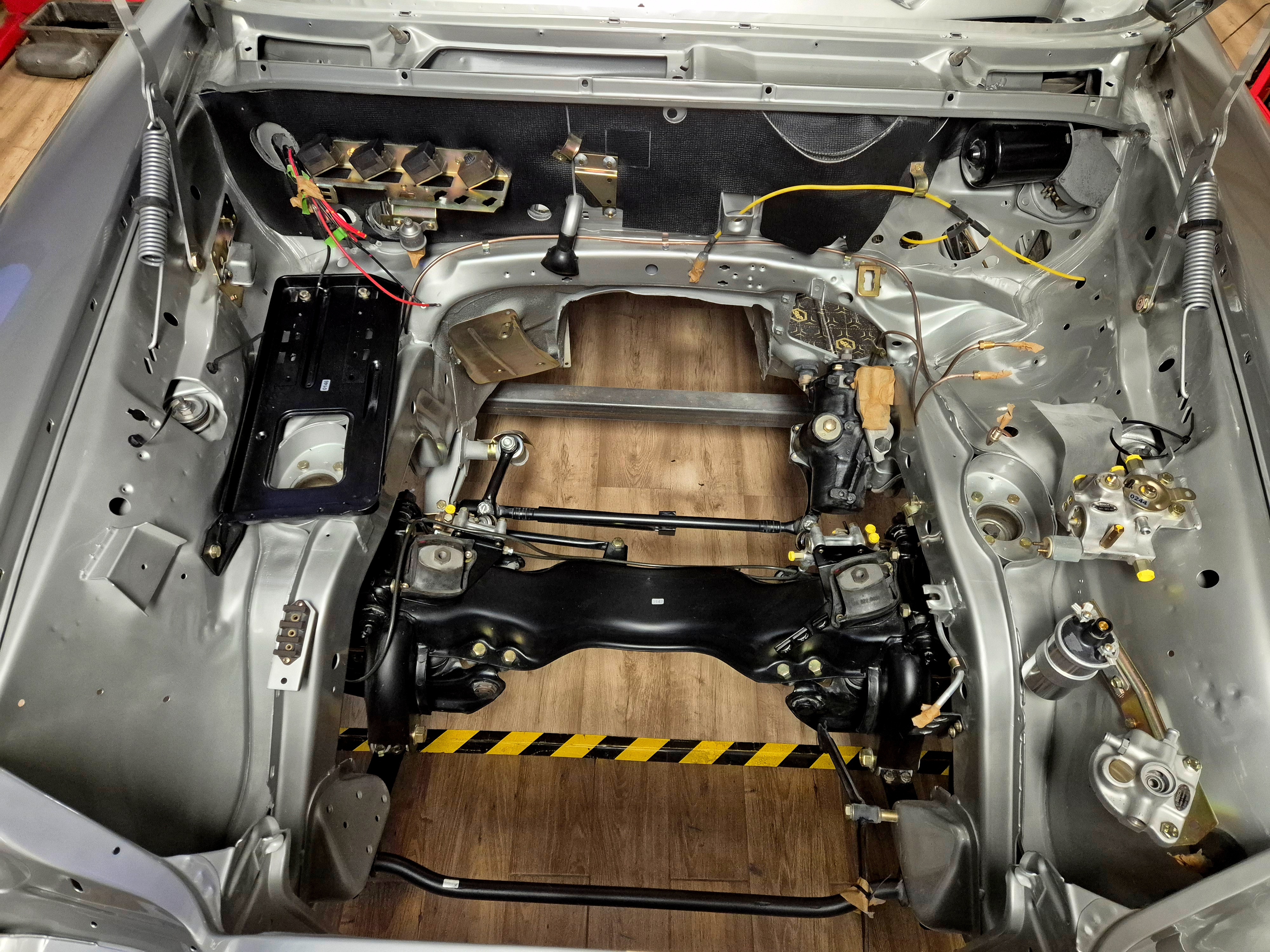

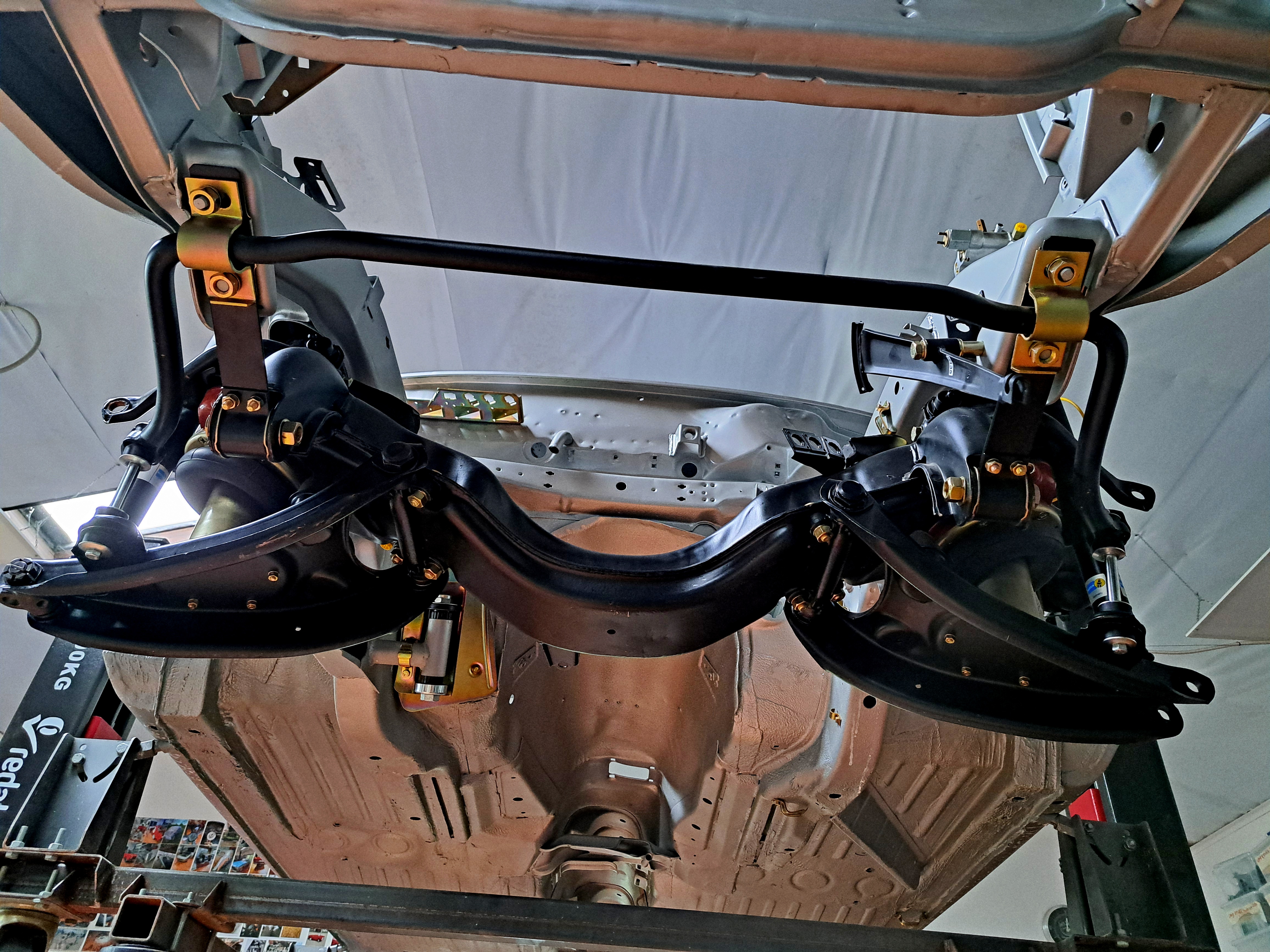

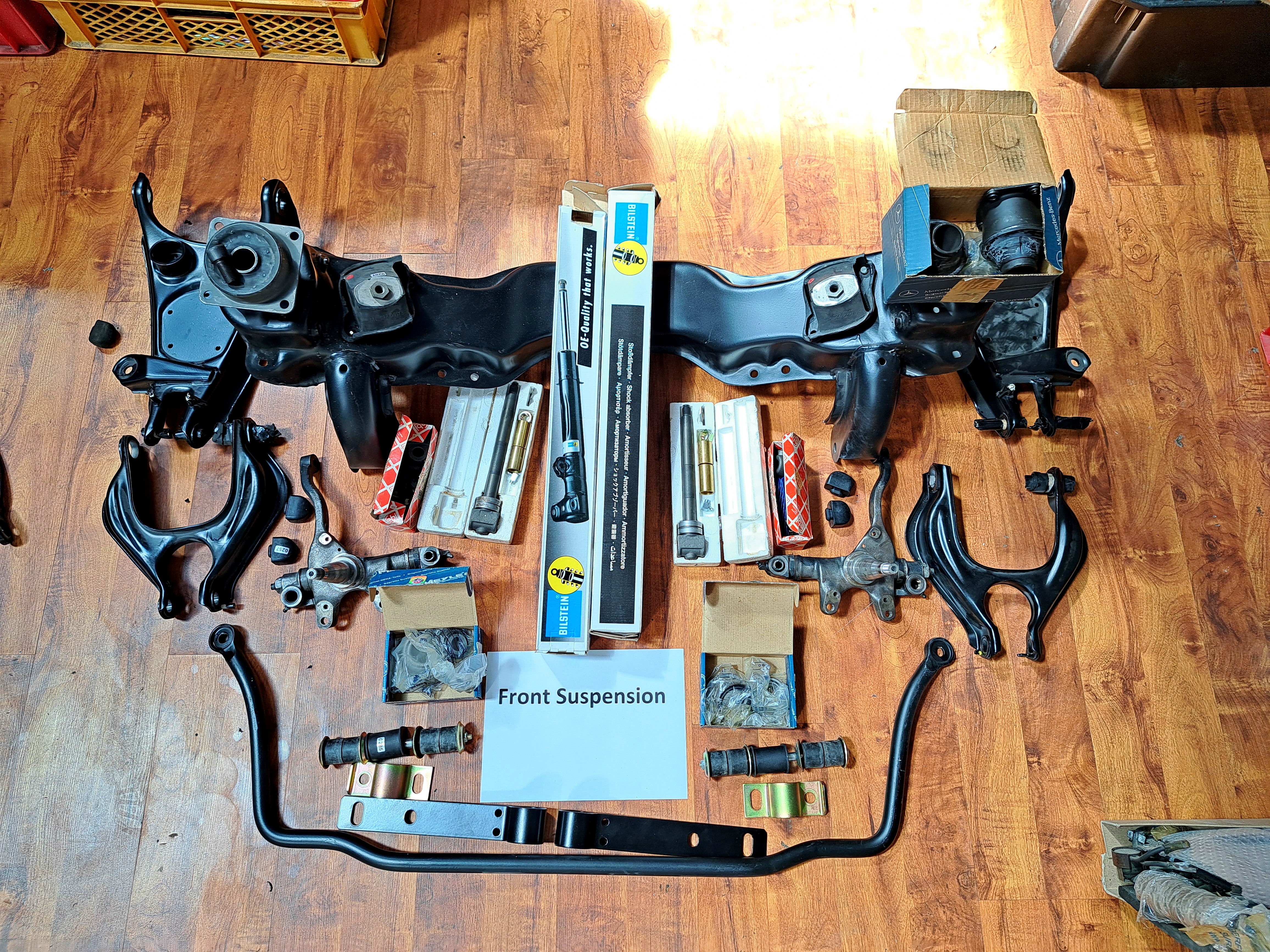

The front suspension components were removed from the car for cleaning, inspection and refurbishment. The front subframe, control arms, anti-roll bar, steering knuckles and associated components received the appropriate surface treatment, while worn parts are replaced where necessary.

The refurbished components are being reassembled with new ball joints, bushes, shock absorbers and mounting hardware.

Correct assembly order and accurate component positioning are particularly important during this stage. Final suspension geometry can only be set once the car has been fully assembled and is sitting at the correct ride height under its normal operating weight.

The Defining Feature of the W109: Air Suspension

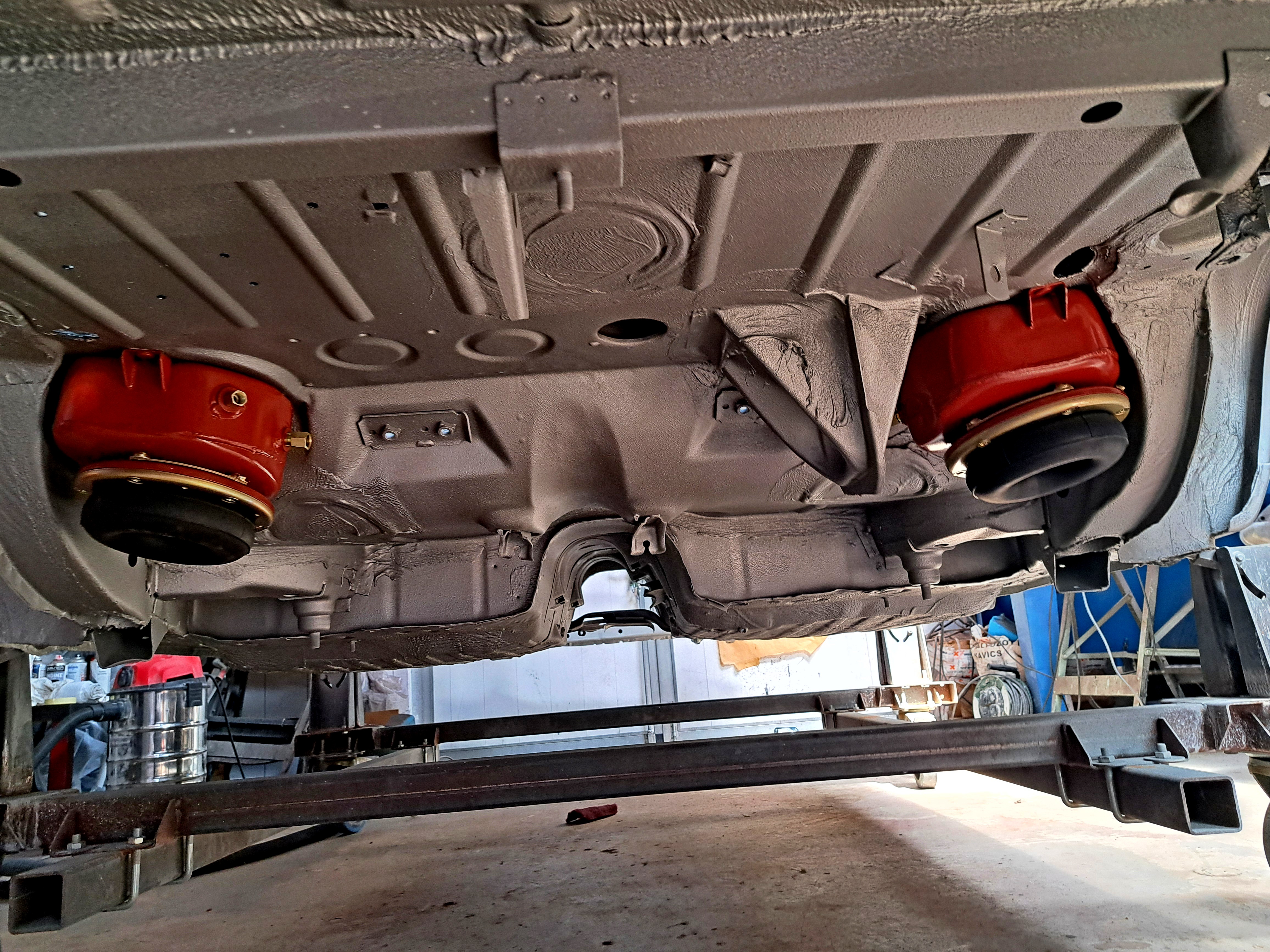

One of the W109’s most important technical features is its complete pneumatic suspension system. It delivers the exceptional ride comfort and consistent vehicle height that helped establish this model among the flagship Mercedes-Benz vehicles of its era.

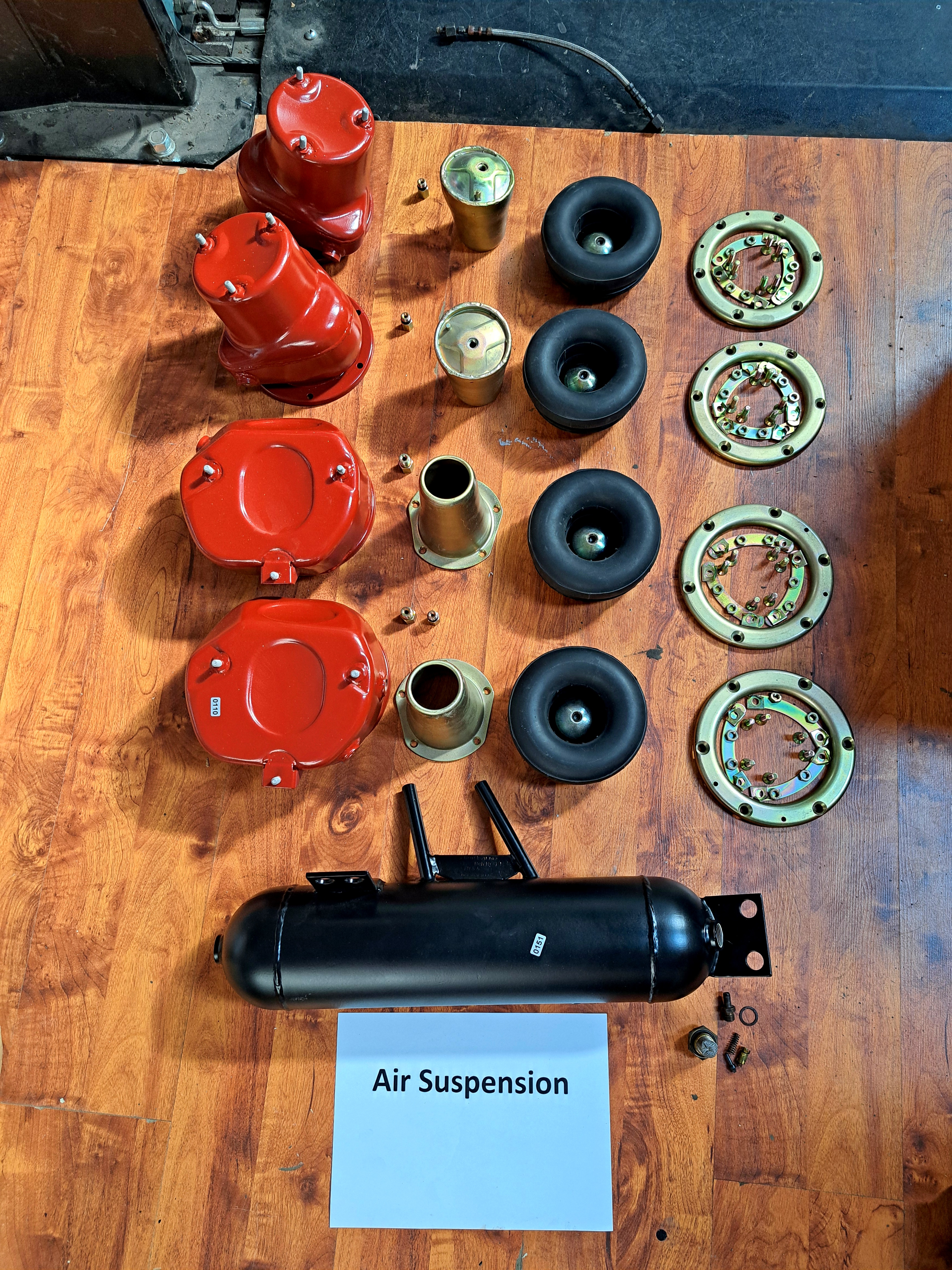

Restoring the system involves far more than inspecting or replacing the rubber bellows. The air spring housings, retaining rings, reservoir, lines, connections and control components all form part of the same interconnected system.

Following cleaning and surface treatment, assembly can begin using new rubber components, seals and carefully prepared fittings. Once completed, the entire system will undergo leak testing and a full operational inspection.

A properly restored W109 air suspension system must not only provide excellent ride comfort. It should also maintain the correct vehicle height after the car has remained stationary for an extended period.

Sound Insulation and Corrosion Protection

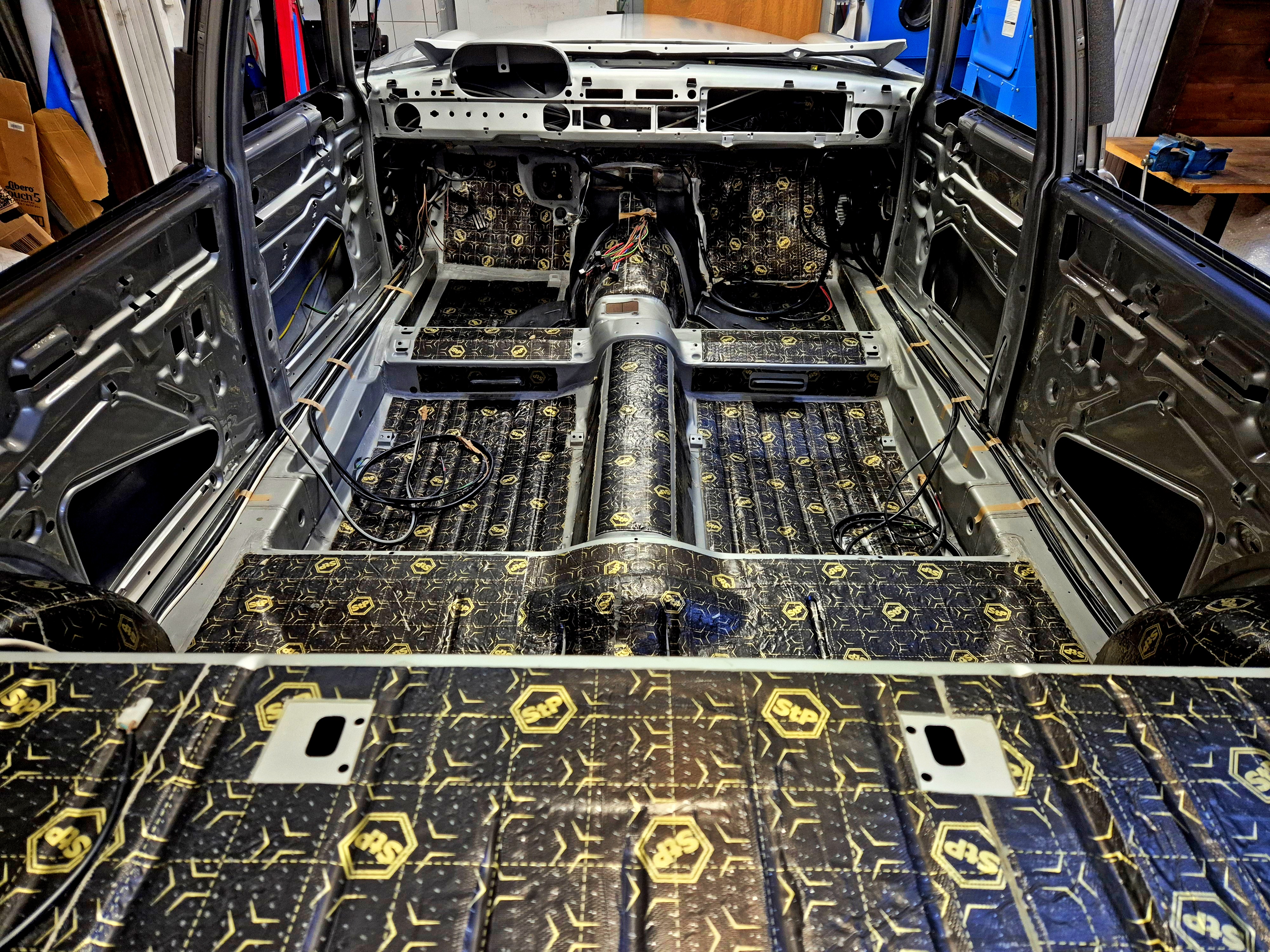

The completely stripped interior provided access to the floorpan, transmission tunnel, bulkhead and the area behind the rear seats.

Vibration- and sound-deadening material has been applied to the prepared surfaces. This reduces resonance through the body panels and helps isolate noise transmitted from the drivetrain and suspension.

The intention is not to change the original character of the car, but to recreate the quiet and refined travelling experience expected from a flagship Mercedes-Benz luxury saloon.

Restoration Quality Is Found in the Details
Many original components can be preserved and restored during a project of this scale. Suitable parts are cleaned, painted, plated or otherwise refinished, while components that can no longer be used safely are replaced.

The colours and finishes of the individual parts are not chosen at random. Black suspension components, yellow-passivated hardware, body-coloured sections and correctly finished air suspension components work together to recreate the appearance associated with Mercedes-Benz vehicles of this period.

One of the clearest signs of a high-quality restoration is that the same level of care can be seen in the concealed areas that will disappear from view once the car has been assembled.

The Reassembly Process Begins
With the body shell prepared, the gradual rebuilding of the car can begin. The suspension, pneumatic system, brakes, drivetrain, wiring harness, glass, interior and exterior trim will all be installed during the following stages.

Every phase depends on the previous one. Installing a component in the wrong sequence can lead to unnecessary dismantling or even damage later in the project. For this reason, documentation, careful organisation of parts and a planned assembly sequence are just as important as the mechanical work itself.

The Restoration Continues
This is only the first chapter in the rebirth of this Mercedes-Benz W109 300 SEL 4.5 V8.

In the following articles, we will document the individual stages in greater detail, including the technical challenges encountered along the way, the assembly and testing of the air suspension system, the restoration of the drivetrain and the long, meticulous process required to return the car to the road as a complete luxury saloon.

The project is being completed in Hungary at the OTC Garage Hungary workshop, with Germany as its final destination.

The story will continue soon
